Belt Clamps:

1050, 1200, 1350 and 1500 Conveyor belt width Application.



CONVEYOR BELT CLAMPS

FIXED CLAMPS

These clamps are installed at strategic locations on the conveyor installation and are, by definition, fixed.  The clamps usually operate at much higher forces than portable or pulling clamps.  The location of the clamp is also dictated by the recognition of local stored energy and the need to control that energy under maintenance or splicing operations.

OPERATING RANGE

110KW Portable drive pulling force = F = 76kN – Helix – T1 Starting fully loaded

Safety factor = ɳ = 3 – conveyor manufacturers           association



According to clamp calculations (2) the force on clamp ≥ 114kN

. . .  120kN Operating Range

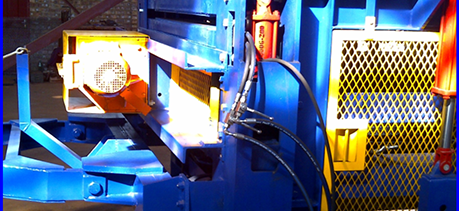

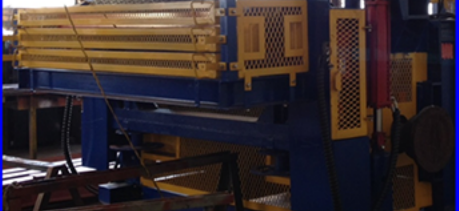

HYDRAULIC BELT CLAMP



2 x 5 ton cylinders

2 x over centre load lock valve

1 x 50/50 split flow divider

1 x 0-5Ton Gauge

1 x 45L 2L-spool valve bank

2 x Mechanical wheel & spindle lock out system

The Hydraulic clamp is S.A.B.S approved

CLAMP REQUIREMENTS

(CONVEYOR MANUFACTURERS ASSOCIATION OF SOUTH AFRICA LIMITED)

Exclusions

Chequer plate and “Vastrap” profiled plates are not recommended and should be disallowed.  In the same manner, plates with an expanded metal covering are not recommended and should be disallowed.
